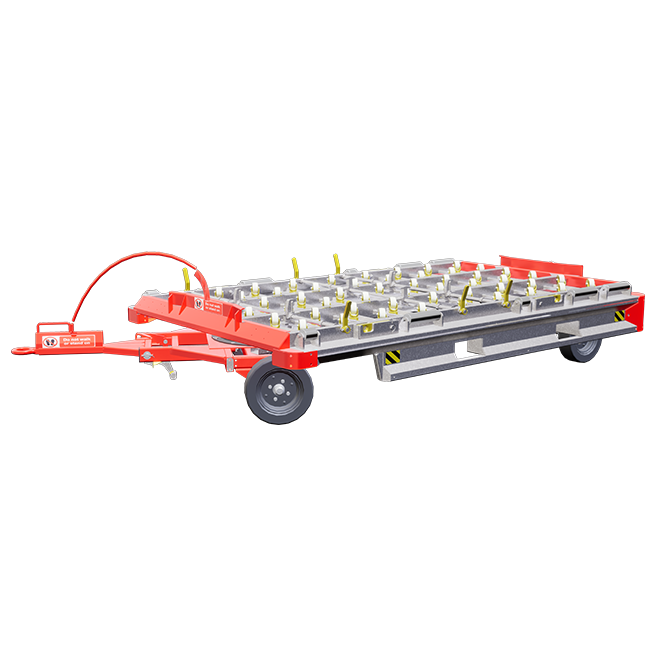

Container Dolly CD-54
Durable and robust container dolly range

The Viking Airport Equipment container dolly range are designed and manufactured by our team in house to meet current IATA, BS and European standards. These one-piece welded chassis dollies offer a light but very robust structure made from high grade tensile steel with outer walls which are fabricated and folded to give them the ability to withstand reasonable collision impacts.

Download datasheet

Load capacity

2500 kg

Maximum width

1730 mm

Maximum length

2996 mm

Weight

2500 kg

Torsion Bar (Kg)

2 x 1500

Type of containers

LD1, LD2, LD3, LD4, LD8

Container dolly type CD54: Durable and robust

All container dolly variants have a top deck height of 508mm (20”) and are fitted with parking brakes to wheel hubs that are activated upon lifting the tow bar. The chassis is fully galvanised and comes with various lift up stops to retain specific containers. Simple handle operated stops located on the sides of the dollies allow them to easily retain containers with no levers, cables, foot pedals etc. to maintain. Overall lightweight construction allows one person to easily manoeuvre the container dolly. A high specification design ensures long service on the airport apron, and our full CD range operate with turn table steer as standard. All of our container dollies are hot dip galvanised to BS EN ISO 1461, and day-glow paint to all corners and hazard stripes to side and rear walls provide high visibility in all conditions. All of this range is avaliable with an anti step over barrier as an optional extra.
